Specifications

Cell

Prismatic – LiFePO4

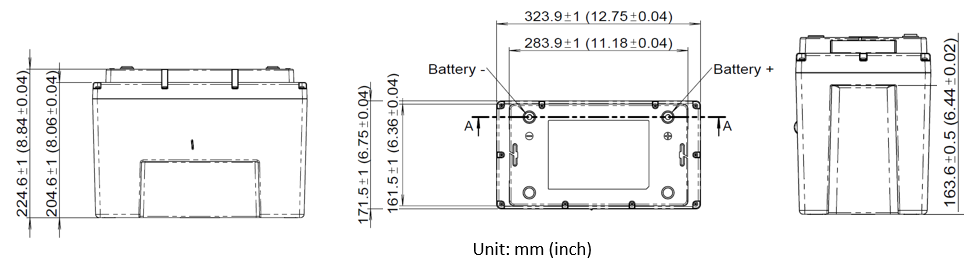

Dimensions

323.9 x 171.5 x 224.6 mm

12.75 x 6.75 x 8.84 inch

(Group 31)

Weight

10.5kg (23.15lbs)

Pack Series Connection

4 Series, 1 Parallel (max.)

Pack Parallel Connection

1 Series, 4 Parallel (max)

Nominal Capacity

≥100Ah

Nominal Voltage

12.8V

End of Discharge Protection Voltage

11.2V

Terminal

F12 (M8)

Cycle Life @25?C

4000 cycles at 80% discharge depth

Depth of Discharge

100%

Reverse Polarity Detection

Beep sound alert.

For 12V application only

(For 24V-48V applications kindly contact STL for further support)

Performance

Charge Voltage

14.4V-14.6V

Balancing Voltage

14.4V

Recommended  Charge Current

5A-30A

Max. Continuous Charge Current

100A

Standard Continuous Discharge Current

50A

Max Continuous Discharge Current

100A

(When SOC ≥ 20% to maximize battery life span)

Peak Discharge Current

200A (30 seconds)

Max. 100A for 24V application

Max. 50A for 48V application

Shelf Life

Recommend every 6 months, maintaining charge between 12.0V ~ 13.6V

Operation Ambient Temperature Range

0°C ~ 45°C

Storage Temperature Range

0°C ~ 35°C (1 year)

0°C ~ 45°C (3 months)

-20°C ~ 45°C (1 month)

Storage SOC

30%-50%

Charger Voltage

(Float Stage)

Not recommended. If used, float

voltage 13.6V-13.8V

Charger Equalization Voltage

Not supported

(Cannot have automatic equalization mode)

Charge Temperature Compensation

Not required and should be disabled if in existing Charger
